EV AC Chargers

Range of Electric Vehicle AC Chargers

We offer the best-in-class AC Chargers with a superior tried-and-tested product for the fast-growing EV Market. These chargers come with top-of-the-line efficiency standards enabling low power costs for customers. A wide power range of 3.3 kW to 42 kW in AC type-2 and 10 kW in BHARAT AC001 standard, it means all variants of electrical automobiles can be charged. Our dedicated service and support team is on call to address any field issues. Our superior Central Management system (CMS) allows customers to monitor, operate, and track charger utilization and payments with a click of a button.

An AC charger is proficient enough to power the onboard charging of a vehicle, converting that AC power to DC to reach the battery. The acceptance of onboard electric car chargers depends on the EV charging companies but is restricted to cost, space, and weight.



Features:

  • AC Type-2 complies with IEC 62196 and BHARAT AC001 complies IEC 60309
  • Available models in 1-Ph and 3-Ph power inputs
  • HMI touchscreen interfACe of 4.3” TFT color touch screen
  • Suitable for extreme Indian environmental conditions
  • Payment options integration with RFID, payment wallets, and credit card
  • Modular design resulting in streamlined support and service
  • All-weather enclosure and HMI for use inside or outside (IP54)
  • Built-in communication modules for (3G/Wifi/LAN)
  • Compliance with OCPP 1.6J protocol

Protections:

  • Input Over Voltage
  • Input Under Voltage
  • Connection Abnormality
  • Emergency Stop
  • Lightning Protection
  • Leakage
  • Short Circuit
  • Over Current
  • Over Temperature
  • Reverse Battery Connection

Applications:

  • Highway
  • Parking
  • Service Station
  • Commercial buildings
  • Fleets
  • Residential
  • Hotels

Our Customer:

Indian Oil Indian Oil

EV AC Chargers Models

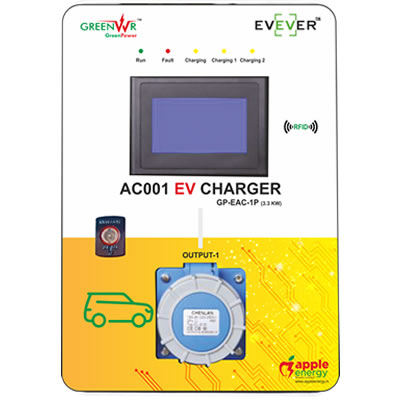

Green Power EV AC Charger GP-EAC-1P

EV AC Charger
GP-EAC-1PBharat AC001

  • Unit type AC intelligent charger
  • BHARAT AC 001 Indian Standard : IEC 60309
  • Modular design, Flexible configuration and easy maintenance
  • Single output
  • Built-in RFID and communications (3G/LAN/WIFI)
  • High degree of protection
  • Swiping card/Scan QR code to pay/ OTP
  • Suitable for 2-3-4 Wheeler Charging
Green Power EV AC Charger GP-EAC-1P-3P

EV AC Charger
GP-EAC-3PBharat AC001

  • Unit type AC intelligent charger
  • BHARAT AC 001 Indian Standard : IEC 60309
  • Modular design, Flexible configuration and easy maintenance
  • Number of output - 3
  • Built-in RFID and communications (3G/LAN/WIFI)
  • High degree of protection
  • Swiping card/Scan QR code to pay/ OTP
  • Suitable for 2-3-4 Wheeler Charging

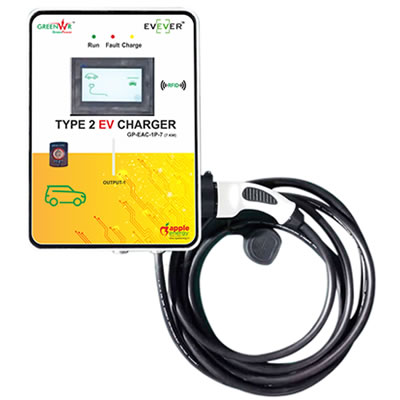

Green Power EV AC Charger GP-EAC-1P-7

EV AC Charger
GP-EAC-1P-7AC Type 2

  • IEC 62196 AC Type-2 charging port
  • Max, Output power : 7KW
  • Output voltage range : 230V/400V AC
  • Network connectivity (OCPP 1.6J)
  • Max. 99.9% power efficiency
Green Power EV AC Charger GP-EAC-1P-7

EV AC Charger

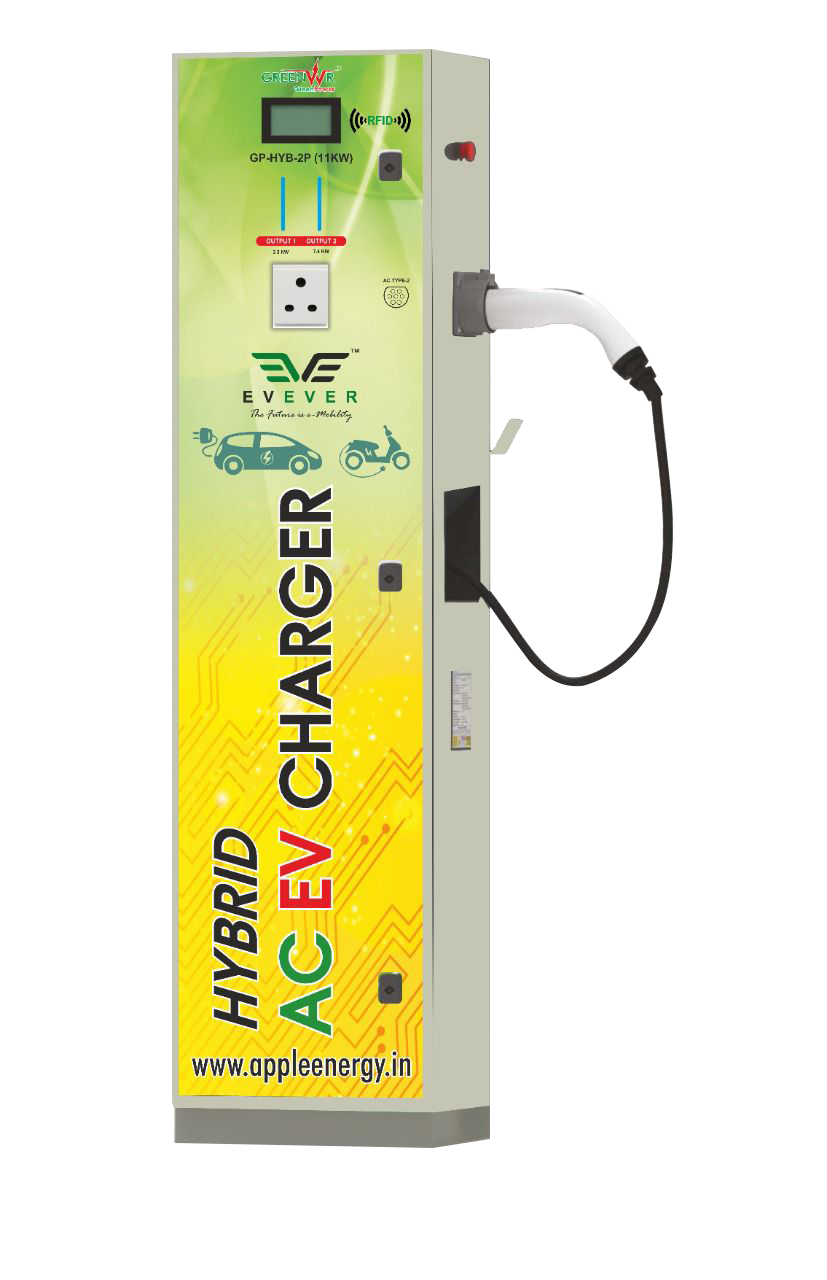

GP-HYB-14K AC Hybrid Charger

  • Unit type AC Intelligent charger
  • Hybrid Indian standard, combination of domestic, IEC 62196 AC Type-2 & IEC 60309 Industrial socket charging port
  • Modular design, Flexible configuration and easy maintenance
  • Built-in RFID and communications (GSM/LN/WIFI)
  • High degree of protection
  • Max, Output power : 14KW or 11KW
  • Output voltage range : 230V/400V AC
  • Built-in Power metering
  • Swiping card/Scan QR code to pay/OTP

Technical Specifications

Model Name/Input GP-HYB-11K GP-HYB-14K
Input Voltage 3 Phase 415V (375-440 V AC) as per IS 12360
Power Factor >0.98
Input Frequency 50(+/- 1 hz)
Wires 5 wire L1, L2, L3, N, PE
OUTPUT
Number of Outputs 2 3
AC Output connector 16A Domestic AC Type-2 (IEC 62196) 16A Domestic (2 nos.) AC Type-2 (IEC 62196)
AC Output Voltage 230V      230V 230V      230V
AC Output Current 15A      32A 15A      32A
AC Output power rating 3.3 KW      7.4 KW 3.3 KW      7.4 KW
User Interface and Control
Display 4.3” color touch screen
User Authentication RFID Card
Buttons & Switch Available
Push Buttons Display wake up, Emergency Stop
Visual Indication Mains available, Charging Status, System error
Environment
Ambient Temp -20°C to 55°C
Storage Temp -20°C to 70°C
Altitude < 2000m
Humidity < 95%, Non-condensing
Sound noise < 55 dB in all directions
Standards IS 17017 / IES 61851 – 1
Communication
Charger and CMS Protocol: OCPP 1.6 (Open charge point protocol), LAN/3G/4G
Protection
Protection Input Over Voltage, Input Under Voltage, Connection Abnormality, Emergency Stop, Lightning Protection, Leakage, Ground fault , Short circuits, Over Current, Over Temperature, Reverse Battery Connection.
Mechanical
Place of installation Indoor/Outdoor
Ingres Protection IP54
Enclosure Protection Vandal Proof Metal Enclosure
Cooling Natural Convection Air Cooled
Wire Length 5 mtr
Dimension (LXBXH) 330 mm x 230 mm x 1400 mm
Weight 28 kg

EV AC Charger - GP-EAC-1P

EV AC Charger - GP-EAC-3P

EV AC Charger - GP-EAC-1P-7
