Range of Electric Vehicle DC Chargers
We offer superior tried-and-tested best-in-class DC Chargers for the fast-growing EV Market. These chargers come with top-of-the-line efficiency standards enabling low power costs for customers. A wide voltage band of 100V to 500V DC in CHAdeMO, 100V to 750V DC in Combined Charging System (CCS), and 20V to 100V DC in BHARAT DC 001, i.e. all variants of electrical automobiles can be charged. Our dedicated service and support team is on call to address any field issues. Our superior Central Management Software (CMS) allows customers to monitor, operate, and track charger utilization and payments with a click of a button.
A DC EV fast charger surpasses all the limitations of an onboard charger and required conversion, rather than directly delivering DC power to the battery, charging speed possesses the potential to be increased significantly. DC fast charging is instrumental for high mileage/long-distance driving and large fleets.
Features:
- CCS complies with IEC 62196-3,CHAdeMO complies with JEVS G104 and BHARAT DC001with GB/T 20234.2.
- Higher power conversion efficiency upto>=95%
- Available models in 3-Ph power input.
- High brightness HMI touch screen interface of 4.3” TFT color touch screen.
- Front panel visual indication for Mains available, System error, Charging status.
- Suitable for extreme Indian environmental conditions
- Payment options integration with RFID, payment wallets, and credit card
- Modular design resulting in streamlined support and service
- All-weather enclosure and HMI for use inside or outside (IP54)
- Built-in communication modules for (3G/Wifi/LAN)
- Compliance with OCPP 1.6J protocol
Protections:
- Input Over Voltage
- Input Under Voltage
- Connection Abnormality
- Emergency Stop
- Lightning Protection
- Leakage
- Short Circuit
- Over Current
- Over Temperature
- Reverse Battery Connection
Applications:
- Highway
- Parking
- Service Station
- Commercial buildings
- Fleets
- Residential
- Hotels
Our Customer:
EV DC Chargers Models

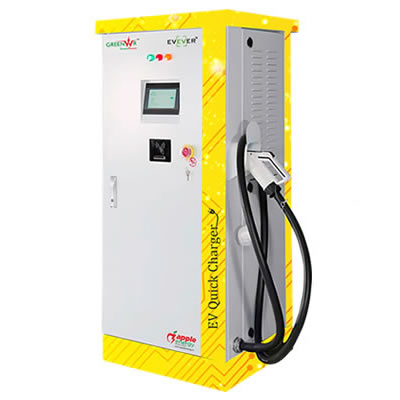

EV DC Fast Charger
GP-EDF-15KBharat DC001
- BHARAT DC001with GB/T 20234.2
- Output power capacity up-to 15 kW for DC001
- High brightness HMI touchscreen interface of 4.3” TFT color touch screen
- Front panel visual indication for Mains available, System error, Charging status
- All-weather enclosure and (Ip54)
- Built-in communication modules for (3G/WIFI/LAN)
- Compliance with OCPP 1.6J protocol
EV DC Fast Charger
GP-EDF-30K
- Output power capacity up-to 30 kW with CCS-2 Type Connector
- High brightness HMI touchscreen interface of 4.3” TFT color touch screen
- Front panel visual indication for Mains available, System error, Charging status
- All-weather enclosure and (Ip54)
- Compliance with OCPP 1.6J protocol

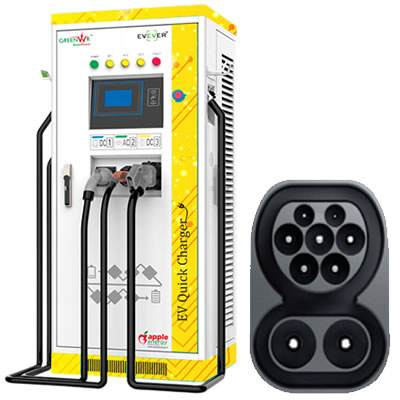

EV DC Fast Charger
GP-EDF-60K
- Output power capacity up-to 60 kW with CCS-2 Type Connector (Each 30 KW)
- Charge Two vehicles at a time
- High brightness HMI touchscreen interface of 4.3” TFT color touch screen
- Front panel visual indication for Mains available, System error, Charging status
- All-weather enclosure and (Ip54)
- Built-in communication modules for (3G/WIFI/LAN)
- Compliance with OCPP 1.6J protocol
EV DC Fast Charger
GP-EDF-240K
- Output power capacity up-to 240 kW with CCS-2 Type Connector (Each 120 KW)
- Charge Two commercial vehicles at a time
- High brightness HMI touchscreen interface of 4.3”. TFT color touch screen
- Front panel visual indication for Mains available, System error, Charging status
- All-weather enclosure and (IP54)
- Built-in communication modules for (3G/WIFI/LAN)
- Compliance with OCPP 1.6J protocol
