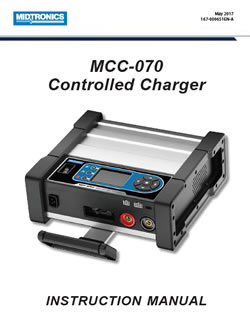

Midtronics MCC-070 Controlled Charger
Advanced Battery Management Solution Providers: Midtronics Controlled Charger
The Midtronics Controlled charger improves battery and electrical diagnostic productivity to save time and money. It reducss wait times to improve customer service Increase sales by regularly inspecting batteries and electrical systems. It ensures customer happiness by spotting possible issues before they happen. The charger offers multiple charging profiles such as reflash support, quick charge,full charging capabilities and can be used as a standalone product.
MCC-070 Controlled Charger Features
- Enhanced User Interface,
- Special Algorithms with Switch-Mode Power,
- App-based Charging,
- Protected Output,
- Wireless Communication & Network Capability.
The MCC 070 offers seamless integration with Midtronics diagnostic tools and BMIS in an advanced battery management solution, as well as benefits to address the unique needs of any service application: Charges batteries – including new AGM & EFB models effectively and quickly, clearly indicates charger status: charging, charge complete, charging error/fault, automatic and efficient charge recovery for deeply discharged batteries, manual voltage & current limit selections, temperature-based selectable charging limits, provides on demand current and constant clean voltage to the vehicle battery for the extended period of time required to update the vehicle computer software.
MCC-070 Controlled Charger Technical Specification
- Charge Cables: 2m (Standard), 3m, 5m
- Power Cord: Accepts locking C13 connector for region-specifc power cables:United States: EMA 5-15 termination, rated at 15A/125V UL CSA, , EU & Latin America: 10A/250V IEC60320 / VDE, Japan: PSE 15A/125V
- Applications: Automotive, Heavy-Duty, Power Sport, Marine, Group 31, Commercial 4D/8D
- Battery Chemistries: Lead acid, AGM, EFB, Lithium ion
- Rating System: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN
- Operating Parameters: Input Voltage: 120 VAC; 60 Hz;12A maximum, 240 VAC, 50 Hz,10A maximum, Output: 15VDC; 70A maximum
- Temperature: Operating temperature range: 0°C to +60°C (32°F to +140°F), Storage temperature range: -10°C to + 85°C (14°F to 185°F)
- Dimensions(without handle or base): Height: 4.80 in (12.19 cm), Width: 13.1 in (33.27 cm), Length: 12.0 in (30.48 cm), Weight:18 lbs
- Humidity: 15% to 85% R.H., non-condensing,
- Certifcations: CUL, TUV, FCC, RoHS, CEC
- Connectivity Wi-Fi: 802.11 b/g/n 2.4GHz, Security – WEP, WP, WPA-2 Enterprise
- Bluetooth: 2.0, USB 2.0 connection, BTLE, CAN bus interface
- Safety Features: Reverse polarity, Clamp connection, Non-12V battery connection, Battery voltage too low (< 5.5 V), Clamp high temperature detection
- BMIS-Enabled: Remote “over the air” software updates, Remote diagnostics, Enterprise asset management, Reporting and analytic tools, Communication with next generation Midtronics platforms and tools,
- User Interface: Advanced navigation and charge applications, Remote notifcations (Wi-Fi- or Bluetooth-enabled), Intuitive charge cycle feedback 3.5” color display, 5-button keypad
