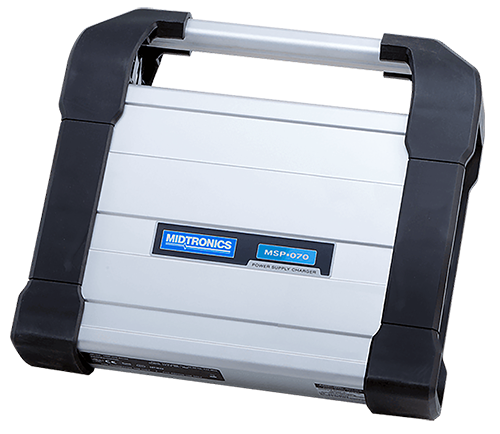

MSP-070: Power Supply Charger
An Effective, Easy-to-Use Charging Solution ; Power Supply Charger
The Midtronics MSP-070 Power Supply Charger provides clean, reliable energy for charging and maintaining battery state-of-charge.Keep the car's electronic and accessory settings intact during vehicle maintenance to prevent potential battery damage from drain, make sure the battery is in top condition when you return it to avoid potential no-starts and to satisfy customers.
With clean and stable DC power supply it is available with various selectable voltage options such as 13.2V, 13.6V and 14.4V via 3-position switch for showroom battery maintenance, reflash, and extended maintenance events, low profile to fit under vehicle, dynamic internal fan control offers quiet operation, CAN interface, 2m, 3m, and 5m cable length options; field-replaceable, Integrated carry handle. The battery drain in front of customer during use of accessories and multiple features can be tiring , the perfect tool for showroom conditioning can be used to continuously charge the battery while the customer can use hassle free.
MSP-070 Extensive Safety & Protection Features
- Low profile to fit under vehicles
- Selectable voltages of 13.2, 13.6, and 14.4 VDC
- Quickly Charges Batteries: Standard lead-acid, AGM, EFB.
- Dynamic internal fan control offers quiet operation
- Avoid potential battery damage from drain during vehicle service
- Maintain vehicle electronic and accessory settings
- Return battery in optimum condition to prevent potential no-starts and ensure customer satisfaction
- 2m, 3m, and 5m cable length options; field-replaceable, Integrated carry handle
MSP-070 Specifications
- Applications: Automotive, Heavy-Duty, Power Sports, Group 31, Commercial 4D/8D
- Battery Chemistries: Lead acid, AGM, EFB
- Certification: UL, CUL, CEC, RoHS, FCC, CE
- Applications: Automotive, Heavy-Duty, Power Sports, Group 31, Commercial 4D/8D
- Operating Parameters: Input Voltage: 110 - 240 VAC; 50 - 60 Hz; 12A max, Output: 14.4 VDC; 70A maximum
- Temperature: Operating temperature range: 0°C to +60°C (32°F to +140°F), Storage temperature range: -10°C to + 85°C (14°F to 185°F)
- Humidity: 15% - 18% RH, non-condensing
- Charge Cables (Field-replaceable): 2m (6.6 ft.) Standard, 3m (9.8 ft.), 5m (16.4 ft.)
- Power Cord: Accepts locking C13 connector for region-specific power cables: United States: EMA 5-15 termination, rated at15A/125V UL CSA, EU & Latin America: 10A/250V IEC60320 / VDE, Japan: PSE 15A/125V
- Dimensions: Height: 3.40 in (86.36 mm), Width: 10.24 in (260.00 mm), Length: 15.35 in (390.00 mm), Weight: 15.55 lbs (7.05 kg) w/o cables, Weight: 19.43 lbs (8.78 kg) with cables
