Midtronics DCA-8000: Dynamic Diagnostic Charging System

DCA-8000

Diagnostic Diagnsotic Charging System

The Advanced diagnostic charging system featuring breakthrough core technology increases the speed of diagnostics, producing the majority of battery decisions in five minutes or less. The DCA-8000 simulates a start event using the integrated 300A (optional 500A) load and then charges the battery to confirm the battery can support advanced automotive system applications like start-stop. As a result, DCA-8000 is better equipped to determine the actual battery state. The DCA-8000 assures service preparedness for new battery failure sites, battery types, and developing vehicle systems when combined with Conductance ProfilingTM.

In order to provide a complete picture of battery status, comprehensive detection diagnostics evaluate a variety of additional battery variables, such as charge acceptance, defect and degradation, cold battery, deep discharge, stratification, and internal battery temperature,evaluates the battery's ability to operate start-stop, regenerative braking, and variable output alternators; future technologies are controlled through routine software upgrades.

  • Increased accuracy
  • Faster speed to decision
  • Improved user experience and other functional benefits
  • Jump Start option for breakdown vehicles

DCA-8000 Features

  • 5” color touchscreen:More information and graphics on screen and consistency with DSS-5000 reduces training needs and improves the service experience
  • New Midtronics User Interface design:Consistent look and feel across Midtronics equipment (i.e. DSS-5000), minimizing training needs
  • Simple functional flow: Fewer screens, steps, and potential confusion points for the technician
  • Dual temperature sensors: Improved temperature accuracy and cold battery detection

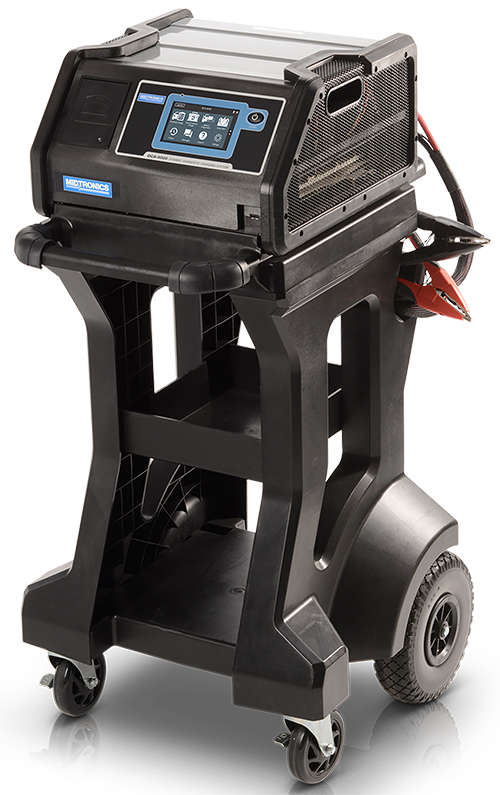

  • Cart design: Large back wheels, pivoting front casters, and a full range push handle improve mobility in the shop environment

DCA-8000 Specifications

  • Charge Cables: 3m (standard),5m (optional)
  • Power Cord: Accepts locking C19 locking connector for region-specific power cables, United States: EMA 5-15 termination, rated at 15A/125V UL CSA
  • Diagnostic Technology: Dynamic Charge Acceptance, Conductance Profiling, Enhanced Battery Temperature, Cold Battery Diagnostic Charging.
  • Applications: Automotive, Power Sports, Marine
  • Battery Chemistries: Flooded lead acid, AGM (flat and spiral), EFB, Gel, Li-ion
  • Rating System: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2
  • Operating Parameters: Input Voltage: 100-240~, 50-60 Hz, 12A maximum, Output: 15VDC; 70A maximum
  • Temperature: Operating temperature range: 0°C to +60°C (32°F to +140°F), Storage temperature range: -10°C to + 85°C (14°F to 185°F)
  • Dimensions: Height: 9.37” in (23.8 cm), Width: 17.25” in (43.81 cm), Depth: 17.82” in (45.26 cm), Weight: 37.4 lbs (21.55 kg)
  • Certifications: CUL, ETL, FCC, ETL, RoHS
  • Connectivity Wi-Fi: 802.11 b/g/n 2.4GHz, Security – WEP, WP, WPA-2 Enterprise, Serial CAN bus interface
  • Bluetooth: 2.0, USB 2.0 connection, BTLE
  • Safety Features: Reverse polarity, Clamp connection, Non-12V battery connection, Battery voltage too low (< 5.5 V), Clamp high temperature detection
  • BMIS-Enabled: Remote “over the air” software updates, Remote diagnostics, Enterprise asset management, Reporting and analytic tools, Communication with next generation Midtronics platforms and tools
  • User Interface: Advanced navigation and charge applications, Remote notifications (Wi-Fi- or Bluetooth-enabled), Intuitive charge cycle feedback , 5” color touch-screen display
