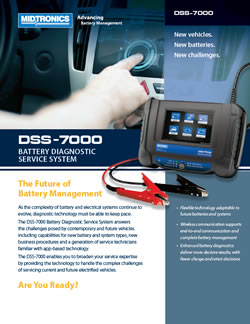

Midtronics DSS-7000 Battery Diagnostic Service System

The future of Battery Management: Midtronics Battery Advance Analyzer

As the complexity of battery and electrical systems continue to evolve, diagnostic technology must be able to keep pace. The DSS-7000 Battery Diagnostic Service System answers the challenges posed by contemporary and future vehicles. including capabilities for new battery and system types, new business procedures and a generation of service technicians familiar with app-based technology. The DSS-7000 enables you to broaden your service expertise by providing the technology to handle the complex challenges of servicing current and future electrified vehicles. Historical testing data is captured and stored in the DSS for easy user access and is also saved to the Midtronics Battery Information System (BIS) for local and enterprise-level data analysis and management. DSS‑7000 testing results can be sent to BMIS to create visibility into your battery management program. This customizable, web-based data analysis and reporting service is designed to make your equipment, staff, and processes more profitable and effective.

The DSS-7000 enables you to broaden your services expertise by providing the technology to handle the complex challenges of servicing current and future electrified vehicles.

BIS offers value in key areas:

Warranty Management
Asset Management
Preventative Maintenance
Customer Service.

Innovative Conductance Profiling™ technology, combines patented Midtronics algorithms and frequent, precise measurements to provide a more complete picture of the state of the battery and electrical system. Improves accuracy and decisiveness in partially discharged conditions, resulting in less charge and retest desicions and the associated longer wait time for technicians and customers, Analyzes the battery’s reserve capacity and ability to support auxiliary power requirements and still have the power to start the vehicle – a key feature as batteries must support a growing number of vehicle accessories and, in start-stop vehicles, start the car more frequently, Identifies failing batteries proactively, presenting the opportunity to help your customers avoid inconvenient no-starts and grow your battery sales.

Midtronics DSS-7000 Battery Features

Flexible technology adaptable to future batteries and systems
Wireless communication supports end-to -end communication and complete battery management
Enhanced battery diagnostics deliver more decisive results, with fewer charge and retest decisions

Midtronics DSS-7000 Battery Technical Specification

Supported Battery Types: 12V Standard batteries: Flooded Lead Acid, AGM Flat Plate, AGM Spiral, Gel
Primary Battery Voltage: 1.0 to 36V
Battery Ratings: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN
Battery Connections: Side post, Remote post, Top post,
Reverse Polarity Detection:
Temperature Sensor: Located on bottom of base unit
Primary Battery Voltage: 1.0 to 36V
Battery Test Cables: 3 ft; removable/fieldreplaceable
Tablet Connection: Android
Temperature & Humidity: Operating temperature range: -17 C / + 40 C (0 F to + 122 F), Humidity: 20-80% R.H. (noncondensing)
Wireless Communications: Class 2 Bluetooth
Wi0-Fi Communications: 802.11 b,g,n
Battery Applicaton: Motorcycle, Automotive inverter, solar
